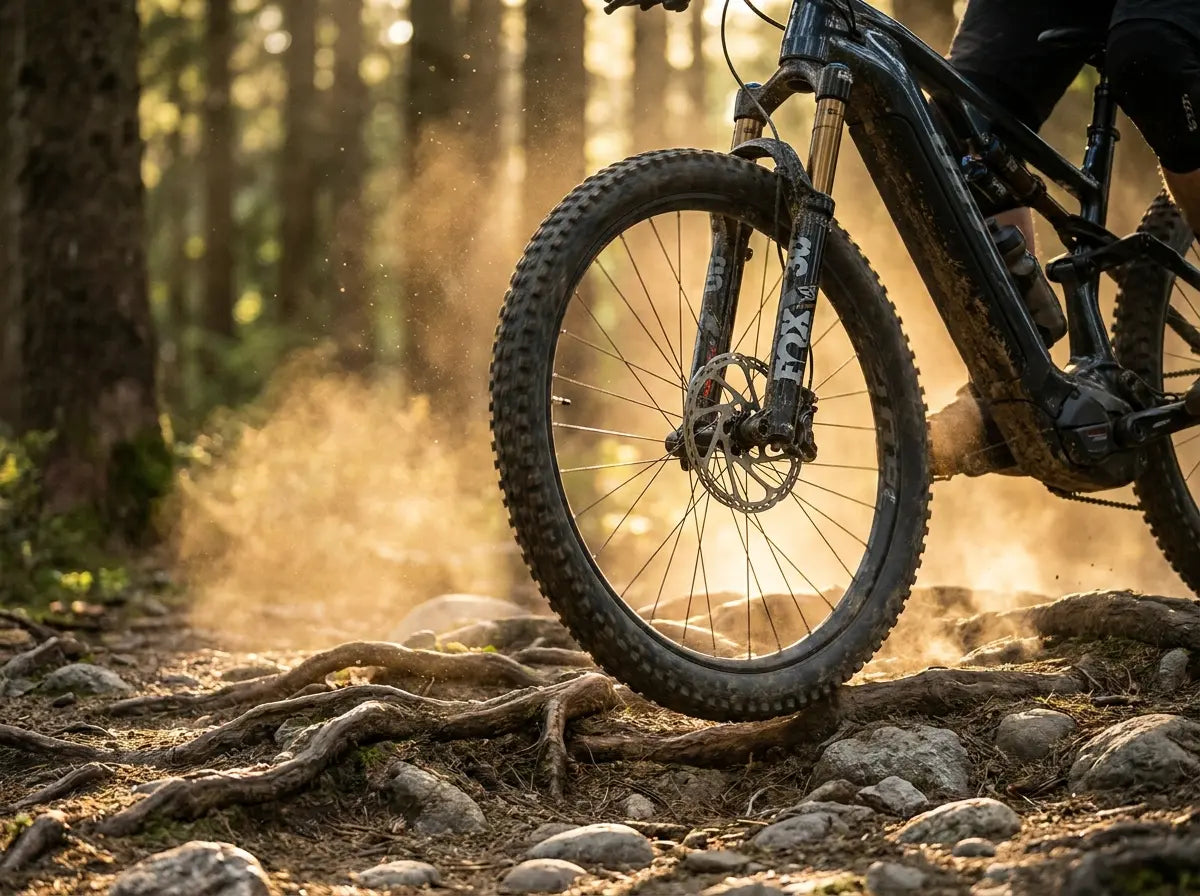

An e-bike differs from a conventional bicycle in one essential point: the system weight. Due to the electric motor, the battery, and the reinforced frame construction, an e-bike usually weighs between 22 and 28 kilograms. When riding on uneven paths, bumpy dirt roads, or cobblestones, this additional weight exerts significantly higher dynamic forces on the front wheel and the suspension.
The suspension fork serves two indispensable functions here. On one hand, it absorbs bumps and vibrations, which provides noticeable relief for the wrists, forearms, and neck. On the other hand, it ensures that the front wheel maintains constant ground contact. Only a tire that adheres reliably to the surface can safely transmit braking and steering forces. If the fork is set too soft, it will bottom out on obstacles and may sustain damage. If it is too stiff, however, modern e-bikes sacrifice valuable comfort and tend to skip in corners.
Air suspension fork vs. coil suspension fork: The differences on an e-bike
Before you make adjustments to your e-bike, you need to determine which suspension system is installed. Two designs dominate the market, differing fundamentally in their function and adjustment options.
Coil suspension forks: Simple and low-maintenance
Coil suspension forks do their job in many entry-level and everyday bikes. Inside one of the fork legs, a classic mechanical steel coil spring operates. This system responds linearly to bumps and is largely insensitive to weather conditions.
However, the adjustment options are limited. There is usually a dial on the fork crown for the so-called preload. This allows the spring to be pre-compressed slightly to correct for slight sagging. However, the actual spring rate cannot be changed. If the factory-installed spring does not match your body weight, the only solution is a mechanical replacement of the steel spring in a workshop.
Air suspension forks: Infinitely adjustable and precise
Higher-quality trekking e-bikes and e-mountain bikes almost exclusively use air suspension forks. Here, a closed, airtight chamber serves as the spring element. Since air is compressible, the suspension behaves progressively: the deeper the fork compresses, the stiffer it becomes, which effectively prevents bottoming out during hard impacts.
The crucial advantage for e-bike riders lies in the flexibility. Via a special valve, you can adjust the air pressure infinitely and to the gram to match your personal body weight, riding position, and additional luggage. To regulate the pressure, you need a special high-pressure pump for suspension systems.
Step by step: Setting up your e-bike suspension fork correctly
The optimal tuning of an air suspension fork requires some patience, but it can be achieved in a few simple steps with basic tools. It is best to set aside ten to fifteen minutes for this.
Step 1: Determine the negative spring travel (sag)
The negative spring travel – usually referred to in technical jargon as sag – is the amount by which the suspension fork compresses when the rider sits on the bike while stationary. This buffer is essential: when you ride through a dip or a pothole, the fork must be able to extend so that the front wheel does not lose ground contact.
The optimal guidelines for sag are based on the e-bike's intended use:
- City and trekking e-bikes: approx. 15 to 20 percent of the total travel (at 63 mm travel, this corresponds to approx. 10 to 12 mm; at 80 mm, approx. 12 to 16 mm).
- E-mountain bikes and e-SUVs: approx. 20 to 30 percent of the travel (for maximum traction on challenging rooty and gravel paths).
To measure, use the small rubber O-ring located on one of the stanchions. If there is no ring, you can carefully place a cable tie around the tube without tightening it. Now proceed as follows:
- Open all lockout levers and set the damping to a neutral position.
- Put on your usual riding gear – including helmet, shoes, and any packed backpack to simulate the actual riding weight.
- Lean the e-bike against a wall or have a second person hold it for you.
- Carefully get on the bike and assume your normal riding position without bouncing.
- Slide the O-ring all the way down to the seal (wiper) of the lower leg.
- Carefully dismount towards the back without letting the fork compress again through weight shifting.
- Measure the distance between the seal edge and the shifted O-ring with a ruler or tape measure.
Step 2: Set the appropriate air pressure (for air forks)
If the measured value does not match the recommended guideline, the air pressure in the suspension fork must be corrected. The valve cap is usually located on top of the left fork leg.
For this task, special bicycle accessories are required: use only a shock pump with a pressure gauge and a pressure release valve. Conventional tire pumps or workshop compressors are not suitable because they deliver too much air and allow too much pressure to escape uncontrollably when disconnecting the valve head.
Manufacturers like RockShox or SR Suntour often attach a reference table to the lower legs that indicates starting pressures in relation to rider weight. If the sag is too high (the fork sinks too deep), increase the pressure in increments of 5 to 10 PSI. If the sag is too low (the fork remains too stiff), release air in a controlled manner using the pressure button on the pump. Repeat the sag measurement until the value matches exactly.
Step 3: Adjust the rebound damping
After setting the fork's stiffness, the next step is to adjust the rebound. The rebound controls how fast the fork extends after absorbing an impact. This is controlled hydraulically via damping oil in the right fork leg.
You can usually recognize the adjuster by a red dial on the underside of the right leg, often marked with a rabbit symbol for fast rebound and a turtle for slow rebound. The goal is to let the fork rebound as quickly as possible without the front wheel losing ground contact or bouncing.
The practical test: Stand next to the e-bike, grasp the handlebars with both hands, and push the suspension fork down with your full body weight. Suddenly release the pressure while keeping your hands on the bars. If the fork kicks back so violently that the front wheel lifts off the ground, the rebound is set too fast (turn towards the turtle). If the fork reacts sluggishly and returns slowly to its initial position, it is set too slow (turn towards the rabbit). On fast, successive bumps, a fork that is too slow would gradually compress and lose travel.
Step 4: Compression and lockout for asphalt and climbs
Many e-bikes also offer a platform or lockout function. Using a blue lever on the fork crown or a remote lever directly on the handlebar grip, the oil flow in the compression stage can be restricted or locked completely.
This lockout is ideal when you are pedaling long distances on level asphalt or riding climbs out of the saddle. This prevents motor and leg power from being wasted due to constant bobbing of the fork. However, as soon as you turn back onto gravel, paving, or unpaved paths, you should immediately open the lockout. This not only spares your joints but also prevents damage to the valves inside the fork during unexpected impacts.
Properly maintain the suspension fork: Protection against wear and defects
A suspension fork is permanently exposed to fine dust, splash water, mud, and, in winter, corrosive road salt. With simple maintenance steps, you ensure that the responsiveness remains smooth and the sensitive sliding surfaces do not wear out prematurely.
Quick maintenance after every ride
The most important maintenance measure takes only one minute: wipe the stanchions (the upper, usually gold or black coated tubes) after every ride with a clean, soft cotton or microfiber cloth. Clean the area around the dust wipers in particular to remove dried dust and crusts of dirt. If dirt particles become embedded in the seals, they are drawn into the seal lips like sandpaper during the next compression.
Care of the sealing rings (wipers)
To keep the rubber wipers supple and prevent dirt water from being drawn into the fork, occasional targeted treatment is recommended. After dry cleaning, apply a few drops of special suspension fork lubricant or neutral silicone spray to the stanchions above the seals. Then compress the fork vigorously several times while stationary so that the oil is distributed. Afterwards, wipe all visible residue thoroughly with a cloth. A permanent film of grease on the outside is counterproductive, as it attracts ambient dust like a magnet.
Avoid typical maintenance mistakes
Many suspension forks are damaged not by hard riding, but by incorrect cleaning habits:
- No high-pressure cleaner: The hard water jet penetrates past even intact seals into the lower legs. There, the water washes out the grease lubrication of the guide bushings and leads to invisible corrosion on the internal springs and shafts.
- No aggressive degreasers: Do not use brake cleaner, cold degreasers, or acidic rim cleaners on the suspension elements. These agents strip the plasticizers from the rubber seals, causing the material to become porous and crack.
- No permanent use of penetrating oil: Standard penetrating oils or rust removers can decompose the internal damping oil and should be kept away from stanchions and seals.
When is a professional fork service at a specialist workshop necessary?
Regular exterior cleaning and air pressure adjustment can easily be performed at home. However, after a certain period of use, surface maintenance is no longer sufficient. Inside the fork, lubricating oils are consumed, foam rings under the seals dry out, and inevitable micro-abrasion occurs.
Depending on the model, manufacturers recommend a service every 50 to 100 operating hours – or at least once per season. During a minor service, the lower legs are removed, cleaned, filled with fresh lubricant, and new wipers are installed. During a major service, the damping cartridge is additionally disassembled, cleaned, and refilled with new hydraulic oil.
You should consult a specialist workshop immediately in the following situations:
- Oil leakage: If damping oil is leaking from the wiper rings or the adjustment screws on the underside of the fork.
- Damaged stanchions: As soon as deep scratches, scoring, or conspicuous discoloration are visible on the sliding tubes.
- Noticeable play: Pull the front brake and move the e-bike back and forth by hand while holding the fork crown. If you feel clunking or play between the stanchions and lower legs, the internal guide bushings are worn out.
- Loss of damping: The fork rebounds uncontrollably fast, no longer compresses at all, or the lockout function shows no effect whatsoever.
Conclusion: Optimal riding comfort on any path
The suspension fork on your e-bike is the connecting link between the road and the handlebars. Careful tuning of the negative spring travel and rebound speed transforms unruly handling into a controlled, comfortable riding experience – whether you are commuting daily on city streets or taking sporty rides on unpaved forest paths. If you regularly clear the stanchions of dirt after your ride and keep an eye on the air pressure, the suspension system will reward you for many years with high riding safety, fine responsiveness, and maximum riding pleasure.
