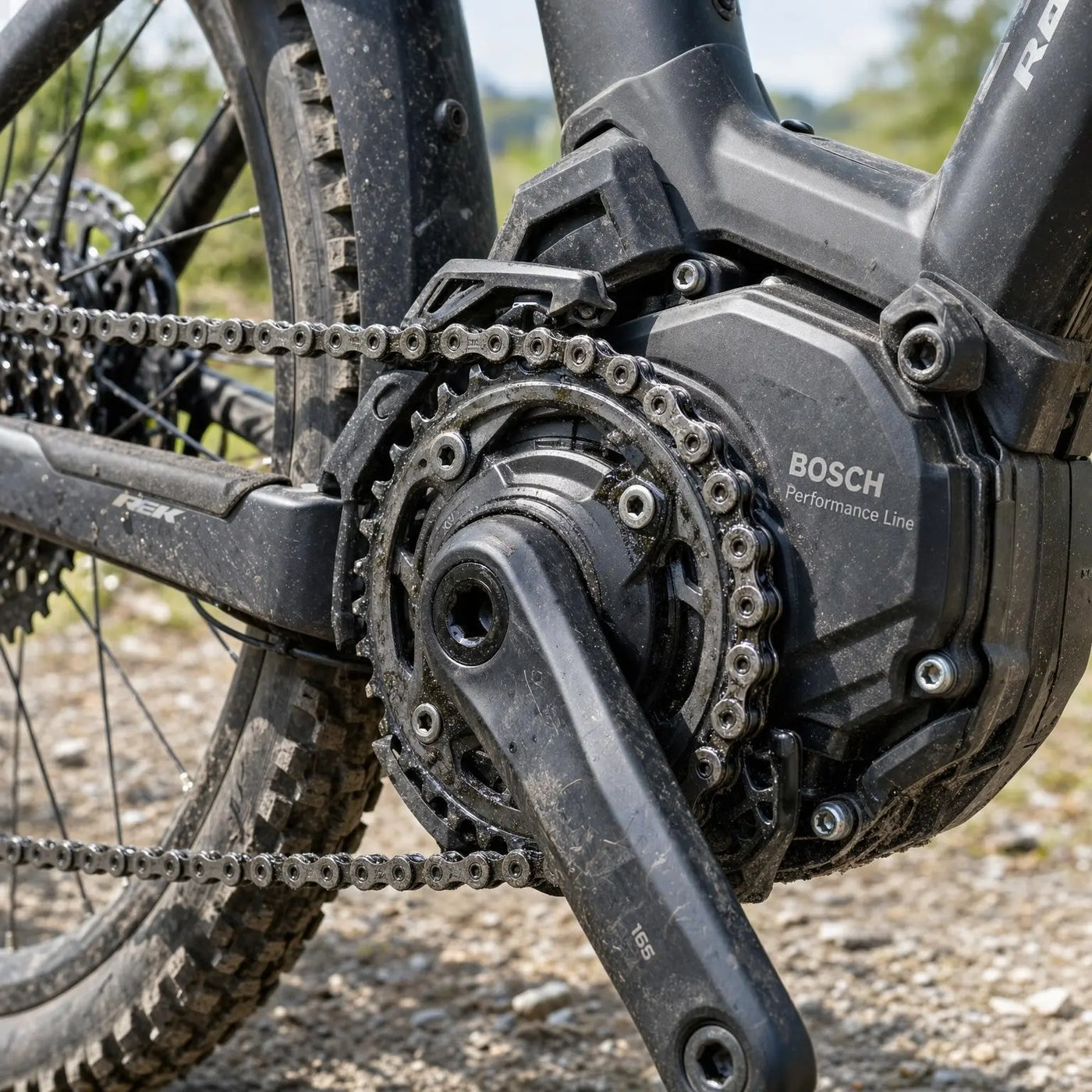

The mid-drive motor of your pedelec transfers a multiple of the torque you exert with your legs alone directly to the chain. As a result, the drivetrain wears out noticeably faster than on a non-motorized bike. Anyone who cleans their e-bike chain and oils it correctly afterwards not only extends the service life of the chain itself, but also that of the cassette and chainring. The bike runs quieter, the gears engage cleanly, and the follow-up costs remain manageable.
These instructions apply to pedelecs with derailleur gears and hub gears. Separate rules apply to bikes with a toothed belt; more on this below.
Why does the chain on an e-bike wear out faster?
The motor assistance increases the tensile force that is permanently placed on every single chain link. This becomes particularly evident when starting on a hill, with loaded panniers, or when using a cargo bike, where the motor provides its maximum torque exactly when the chain is under heavy load anyway. In its maintenance instructions for e-bike drives, Bosch explicitly points out that the drivetrain on a pedelec should be checked more frequently than on a classic bike.
The crucial factor here is: wear does not take place on the teeth of the chain, but on the inside. Pins and sleeves rub against each other, the chain links develop minimal play, and the chain becomes slightly longer over its entire length. Experts call this chain elongation. This is precisely why external cleaning alone is not enough: a chain that looks shiny on the outside can long since be beyond the limit on the inside.
This elongation has consequences for the entire drivetrain. An elongated chain no longer engages cleanly in the gaps between the teeth and literally grinds down the cassette—the sprocket set on the rear wheel—as well as the front chainring. A timely chain replacement costs a fraction of what a complete drivetrain set of chain, cassette, and chainring costs.
Added to this are everyday conditions in Vienna. In winter, grit and salt lie on the bike paths, both of which act like grinding paste in the chain link. Commuting routes along the Danube Canal and the Ring cycle path mean constantly wet chains in the rain, while in summer, dust from construction sites and dry gravel sections binds the oil. Anyone who uses their bike all year round should keep an eye on the drivetrain more frequently accordingly. This applies to all drive types, but especially to our e-bikes with mid-drive motors.
How often should you clean the e-bike chain?
As a guideline for everyday use: every 200 to 300 kilometers, or at least once a month if you ride regularly. This value is a guide, not a law.
Intervals based on specific occasions are more sensible than a rigid calendar. Clean the chain after every long ride in the rain, after tours on gravel or forest paths, and after winter rides with salt and grit. With salt, the rule is: promptly, not just on the next weekend. Salt residues attract moisture and attack pins and chain plates as long as they remain on the chain.
Four signs tell you reliably that it is time:
- The chain squeaks when dry, especially under load.
- There is a visibly dark, pasty layer of dirt between the chain links.
- The shifting process feels rough or takes a moment longer.
- The chain no longer shines silver, but looks dull and black.
It is important to distinguish between cleaning and re-oiling. You can re-oil much more frequently than you perform a complete cleaning. Only one rule is non-negotiable: never apply oil to a dirty chain. Otherwise, the fresh oil will transport the dirt exactly where it does the most damage—into the joint.
Seasonal intervals: Summer vs. winter in Austria
In dry summer periods, you can extend the intervals. The greater risk here is not too little oil, but too much: an over-oiled drivetrain binds dust and forms a grinding layer within a few rides.
In winter, the opposite is true. Moisture, road salt, and grit demand shorter intervals, weekly if in doubt. Even if a complete cleaning is not possible, a simple trick helps enormously: pull the chain through a dry rag after the ride while slowly turning the crank backwards. This takes two minutes and removes the majority of the salty moisture. For winter operation, the ÖAMTC also recommends promptly removing salt residues from the drivetrain and frame after riding on salted roads.
Measure chain wear instead of guessing
Whether a chain is still usable cannot be judged by its appearance, but only measured. There is a chain wear gauge for this—a small measuring tool that you hook into the chain and which displays the elongation in percent.
For pedelecs, you should orient yourself towards the lower limit. The common recommendation is to replace the chain starting from about 0.5 percent elongation, and at the latest at 0.75 percent. The exact limit depends on the chain and drivetrain manufacturer; Shimano specifies its own requirements for STEPS drives in dealer documents. Check the value for your specific chain in the manufacturer's data sheet.
Measure during every second cleaning and note the date and mileage. This way, you can see over time how quickly your drivetrain is actually wearing out. A tip that saves a lot of trouble: chain, cassette, and chainring wear out together. If the chain is replaced too late, the new chain will skip on the worn-in cassette, and you will have to replace both. Chain elongation above the limit? Then the e-bike service in our Vienna workshop will handle the professional replacement of the chain and cassette; you can schedule an appointment.
Cleaning and oiling the e-bike chain correctly (step by step)
Plan for about 30 minutes for the entire process, including drying time.
Preparation
First, remove the battery and take off the display. This is the basic rule before any wet work on a pedelec and protects the contacts from moisture. Then mount the bike in a repair stand or prop it up so that the crank can turn freely.
What you need:
- Chain cleaner or biodegradable degreaser
- Chain brush or soft brush with stiff bristles
- Two to three lint-free rags
- Chain oil suitable for the season
- Optional: disposable gloves and a piece of cardboard to catch drips
Step 1: Remove coarse dirt
Place the rag around the chain and turn the crank slowly backwards until the chain has passed through completely once. Repeat this with a clean part of the rag.
Consistently avoid using a high-pressure cleaner. Water under pressure forces dirt into bearings, the motor housing, and battery contacts instead of removing it.
Step 2: Cleaning
Apply the chain cleaner sparingly and let it sit for a moment. Then brush in both directions: over the inner plates, the outer plates, and the rollers. The dirt sits primarily on the sides of the plates and between the rollers.
Those who ride a lot will save time with a chain cleaning device. This chain washing box is hooked onto the chain and pulls it through several brush rollers while you crank. When spraying, shield the motor unit and the battery interface with a rag or piece of cardboard.
Step 3: Rinse and dry completely
Rinse with a little water and no pressure. Afterwards, wipe the chain thoroughly dry and let it air out for a few minutes.
You should not shorten this step. Oil on a damp chain traps residual moisture in the joint, and the chain will corrode from the inside even though it looks well-maintained on the outside.
Step 4: Oiling
Apply the oil drop by drop to every single roller while turning the crank slowly backwards. One full chain rotation is sufficient.
Do not spray the oil over the drivetrain on a large scale. Oil on brake discs and pads renders the brakes useless, and oiled pads cannot be cleaned, only replaced. You can find suitable brake pads and brake parts in the shop, but it is more pleasant not to need them at all.
Let the oil soak in for five to ten minutes and wipe off the excess on the outside. The rule of thumb: the oil belongs in the joint, not on the plate.
Step 5: Function check
Shift through all gears once and listen for noises and clean gear changes. Then check the chain elongation with the gauge, assess the chain tension and derailleur, and look at the sprockets from the side. Pointed, hook-shaped teeth—"shark fins" in workshop jargon—indicate that the cassette needs to be replaced as well.
Which oil is best for e-bike chains?
The choice depends primarily on the weather you ride in.
- Wet Lube: adhesive and rain-resistant, the first choice for autumn, winter, and for anyone who commutes in all weather. However, it binds more dust and requires more thorough wiping.
- Dry Lube: soaks in and dries off, keeping the chain visibly cleaner. Ideal for dry summer months and dusty gravel routes, though it must be reapplied more frequently.
- Wax-based lubricants: result in the cleanest chain with the least dust binding, but last shorter and require a completely degreased chain upon initial application.
- Special e-bike chain oils: designed for the higher surface pressure caused by motor torque and usually provided with adhesive additives. The safest choice for mid-drive pedelecs.
Equally important is what does not belong on the chain. Penetrating oil in the style of WD-40 dissolves dirt and displaces moisture, but is not suitable as a long-term lubricant: it displaces existing grease from the joint and evaporates rapidly. Cooking oil hardens. Motor oil is too viscous and binds dirt. And in general: more oil does not mean more lubrication, but more dirt.
One exception applies to many Vienna city pedelecs. Bikes with toothed belts, such as the Gates Carbon Drive, are never oiled. Oil and grease bind dirt there and damage the belt and pulleys. The belt is cleaned exclusively with water and a soft brush. If you are unsure which drive your bike has: for city e-bikes for everyday life in Vienna, the drive type is in the product data, and if in doubt, we can look at it together.
In the event that the measurement indicates a replacement is needed, you can find suitable replacement chains for your e-bike in the shop. Chains are matched to the number of sprockets; an 11-speed chain does not fit an 12-speed cassette. If you are unsure, we will advise you on the appropriate shifting type.
Cleaning the e-bike chain and sprockets: What you need to look out for
Cleaning only the chain does little. The dirt sits just as much between the sprockets, in the jockey wheels, and on the chainring, and migrates back onto the freshly oiled chain within a few crank rotations.
On the cassette, it is best to work with a narrow brush or pull a narrowly folded rag through the gaps between the teeth like a ribbon. Do not forget the jockey wheels on the rear derailleur—the two small plastic wheels that the chain runs through. The typical black oil sludge that noticeably impairs shifting precision collects there.
Special caution is advised around the mid-drive motor. No direct water jet on the motor cover, the torque sensor, or the cable routing. The seals are designed for splash water, not pressurized water.
Can you use brake cleaner for the e-bike chain?
Not recommended.
Brake cleaner is designed to degrease without leaving residues. It does exactly that in the chain joint, washing the lubricant out of where it belongs. The chain looks clean afterwards, but runs completely dry, and wear accelerates.
Added to this is a second risk. The aggressive solvents can attack paint, plastic covers, seals, and stickers, and the spray mist settles on bearings, tire sidewalls, and the motor housing.
If you use brake cleaner nonetheless, then only with the chain removed from the bike and with subsequent complete re-lubrication. For everyday maintenance, this effort is almost never sensible. Instead, reach for a pH-neutral bicycle chain cleaner or a biodegradable degreaser and re-oil immediately after drying.
When you should visit the workshop
Four situations speak for a workshop visit: chain elongation is above the limit, gears skip despite a clean chain, the cassette shows visibly worn-in teeth, or unusual noises are coming from the motor unit.
Replacing the chainring on a mid-drive motor requires special tools and compliance with the torque values in the manual. This is the point at which doing it yourself ceases to be sensible. If you are in the area anyway: drop by our Vienna branch, we will take a look at the drivetrain for free and tell you how much remaining service life your chain has.
Frequently asked questions about e-bike chain maintenance
How often do I have to oil my e-bike chain?
With regular use, about every 200 to 300 kilometers; significantly more often in winter or after rides in the rain. The condition is decisive: as soon as the chain looks dry or squeaks, re-oiling is due.
Can I use WD-40 for the e-bike chain?
Classic penetrating oil is suitable for loosening dirt and moisture, not as a long-term lubricant. It displaces existing lubricant and evaporates rapidly. Use a real chain oil afterwards.
Which chain oil is best for e-bikes?
For mid-drive pedelecs, an e-bike-specific chain oil with high pressure resistance is recommended. In predominantly dry weather, a dry lubricant is sensible; in wet conditions and in winter, a wet lubricant.
May I wash my e-bike with a high-pressure cleaner?
No. Water under pressure penetrates bearings, the motor housing, and battery contacts and damages seals. Use a soft water jet, sponge, and brush, and remove the battery beforehand.
When must the e-bike chain be replaced?
When chain elongation exceeds the limit. For e-bikes, a replacement is usually recommended starting from about 0.5 percent elongation. A chain wear gauge costs little and prevents expensive consequential damage to the cassette and chainring.
Do I also have to oil a belt drive?
No. A toothed belt is cleaned exclusively with water and a soft brush. Oil or grease would bind dirt and damage the belt and the pulleys.
